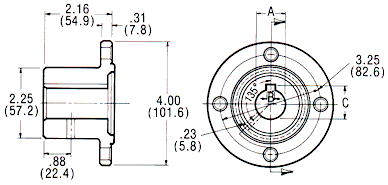

Coupling Rear
Half - 4" Diameter - Type 1 |
|
|
|
 |
|
|
|
4" Part
Number |
Note:
Type 2 - same as Type 1 except as shown. |
|
Type
1 |
Type
2 |
A |
B |
C |
|
4865B |
4865BB |
1.00
in (25.40 mm) |
0.25
in (6.35 mm) |
1.12
in (28.45 mm) |
|
4865C |
4865CC |
1.12
in (28.45 mm) |
0.25
in (6.35 mm) |
1.24
in (31.50 mm) |
|
4865D |
4865DD |
1.25
in (31.75 mm) |
0.31
in (7.87 mm) |
1.39
in (35.31 mm) |
|
4865E |
4865EE |
1.38
in (35.05 mm) |
0.31
in (7.87 mm) |
1.52
in (38.61 mm) |
|
4865F |
4865FF |
1.50
in (28.10 mm) |
0.38
in (9.65 mm) |
1.67
in (42.42 mm) |
|
|
|
|

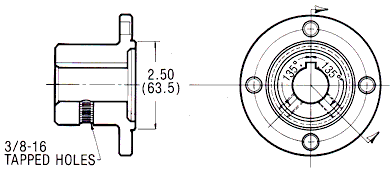

Coupling Rear
Half - 4" Diameter - Type 2 |
|
 |
|
|
|

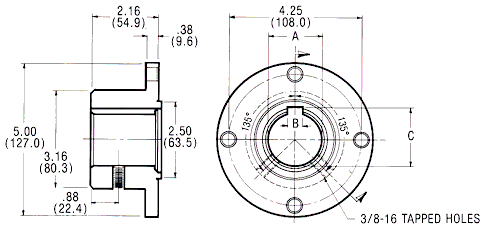

Coupling Rear
Half - 5" Diameter |
|
 |
|
|
|
5" Part
Number |
A |
B |
C |
|
4886B |
1.00
in (25.40 mm) |
0.25
in (6.35 mm) |
1.12
in (28.45 mm) |
|
4886C |
1.12
in (28.45 mm) |
0.25
in (6.35 mm) |
1.24
in (31.50 mm) |
|
4886D |
1.25
in (31.75 mm) |
0.31
in (7.87 mm) |
1.39
in (35.31 mm) |
|
4886E |
1.38
in (35.05 mm) |
0.31
in (7.87 mm) |
1.52
in (38.61 mm) |
|
4886F |
1.50
in (38.10 mm) |
0.38
in (9.65 mm) |
1.67
in (42.42 mm) |
|
4886H |
1.75
in (44.45 mm) |
0.44
in (11.18 mm) |
1.95
in (49.53 mm) |
|
4886K |
2.00
in (50.80 mm) |
0.50
in (12.70 mm) |
2.23
in (56.64 mm) |
|
4886M |
2.25
in (57.15 mm) |
0.56
in (14.22 mm) |
2.50
in (63.50 mm) |
|
|
|
