Single
& Double Oil
Coolers |
|
|
 |
Single
Oil Coolers |
To help identify your oil cooler obtain the dimensions for the letters shown in
the diagram and match them to the reference number in the chart below:
- A–
Overall Length
- B–
Tube Length
- C–
Oil Pipe NPT Size
- D–
Water Hose I.D. Size
|
|
|
All
Measurements Shown in Inches |
|
Reference # |
A |
B |
C |
D |
|
SOC101 |
9 3/4" |
6" |
3/8"
NPT = 19/32" ID |
1" |
|
SOC102 |
10" |
6 3/4" |
3/8"
NPT = 19/32" ID |
1 3/4" |
|
SOC103 |
12 3/4" |
9" |
3/8"
NPT = 19/32" ID |
1" |
|
SOC104 |
12 1/2" |
9" |
3/8"
NPT = 19/32" ID |
1 5/8" |
|
SOC105 |
15 3/4" |
12" |
3/8"
NPT = 19/32" ID |
1" |
|
|
|
|
Please note: If the dimensions for your unit are not
shown in the chart above, we can have the manufacture
fabricate. Please supply us with dimensions as listed
above. All units are also available in high pressure
if required. |
|
|
|
|
Please call us at
1-800-927-9295
with the appropriate reference number
for more information: |
|
or |
|
|
|
|
|
|
|
 |
Double
Oil Coolers |

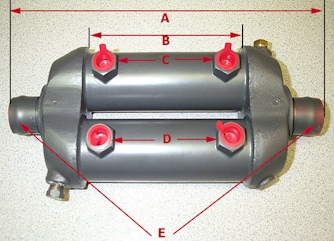

To help identify your oil cooler obtain the dimensions for the letters shown in
the diagram and match them to the reference number in the chart below:
- A–
Overall Length
- B–
Tube Length
- C–
Oil Pipe NPT Size
- D–
Oil Pipe NPT Size
- E–
Water Hose I.D.
|
|
|
All
Measurements Shown in Inches |
|
Reference # |
A |
B |
C |
D |
E |
|
DOC101 |
11" |
6" |
3/8"
NPT = 19/32" ID |
3/8"
NPT = 19/32" ID |
1 1/4" |
|
DOC102 |
14" |
9" |
3/8"
NPT = 19/32" ID |
3/8"
NPT = 19/32" ID |
1 1/2" |
|
DOC103 |
14" |
9" |
3/8"
NPT = 19/32" ID |
3/4"
NPT = 15/16" ID |
1 1/8" |
|
DOC104 |
14" |
9" |
3/8"
NPT = 19/32" ID |
3/4"
NPT = 15/16" ID |
1 1/4" |
|
DOC105 |
14" |
9" |
3/8"
NPT = 19/32" ID |
3/8"
NPT = 19/32" ID |
1 5/8" |
|
DOC106** |
16" |
9" |
3/8"
NPT = 19/32" ID |
3/4"
NPT = 15/16" ID |
1 3/4" |
|
DOC107 |
17 1/2" |
12" |
3/8"
NPT = 19/32" ID |
3/4"
NPT = 15/16" ID |
1 1/8" |
|
DOC108 |
17 1/2" |
12" |
3/8"
NPT = 19/32" ID |
3/4"
NPT = 15/16" ID |
1 1/2" |
|
DOC109 |
17 1/2" |
12" |
3/8"
NPT = 19/32" ID |
3/4"
NPT = 15/16" ID |
1 5/8" |
|
DOC110* |
19" |
10" |
3/8"
NPT = 19/32" ID |
3/8"
NPT = 19/32" ID |
1 1/4" |
|
* One
end has a 90 degree bend. |
|
** Both
ends have a 90 degree bend. |
|
|
|
|
Please call us at
1-800-927-9295
with the appropriate reference number
for more information. |
|
or |
|
|
|
|
|
Contact us for your marine
diesel engine needs. |
|
|
|
 |
