WESTERBEKE

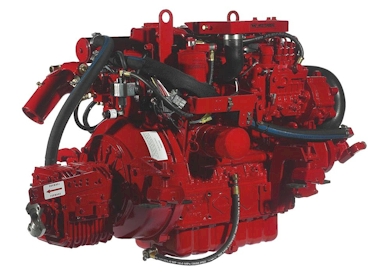

65A FOUR MARINE DIESEL ENGINE |
|
|
|
|
|
|
Our
Newest Engine - Four cylinder, four cycle smoothness at 2600
RPM! |
| |
Lightweight and Compact
Designed by Westerbeke, pioneers in lightweight marine diesel
engines, the 65A Four is a compact four-cylinder engine
perfect for difficult installations.
The 65A Four provides a power to
weight ratio to be envied while requiring modest engine
room.
|
 |
|
|
65A Four - Overview & Specifications
|
|
|
Cylinders: 4 |
|
Bore: 3.86 in. |
|
Stroke: 4.33 in. |
|
Displacement: 202.50
cu. in. |
|
Aspiration: Natural |
|
| Length: 40.90 in. |
| Width: 25.30 in. |
| Height: 27.90 in. |
| Weight: 730.00 lbs. |
|
|
|
|
|
Standard
Equipment |
|
-
Fresh water cooling
-
Engine prewired to plug-in
connector
-
EZ Bleed fuel system
-
12 volt 72 ampere alternator
-
Domestic hot water
connections
-
Coolant recovery tank
-
Throttle, stop, and shift
control brackets
-
Low oil pressure and high
water temperature alarms
|
-
Gear-driven sea water pump
-
Short profile marine gear
with 1.88:1 reduction
-
Glow plug cold starting aid
-
Four point adjustable flex
mounts
-
Lube oil drain hose
-
Tuned air intake silencer
-
Operator’s Manual and Parts
List
-
EPA, CARB & CE compliant
|
|
|
Optional
Equipment |
|
-
Captain panel with alarm
(tachometer with lights)
-
Admiral panel with alarms
(tachometer with gauges)
-
Dual station senders
-
Other gear ratios
-
100 amp alternator single
output; 160 or 190 amp dual
output in place of standard
-
Remote expansion tank
-
Fuel filter/water separator
|
-
Muffler and fittings
-
"A" on board spare parts kit
-
"B" extended cruising spare
parts kit
-
Anti-siphon valve for
overboard cooling discharge
water
-
Technical Manual
-
Exhaust connection (water
injected 90°, 45° elbow)
-
Propeller shaft couplings
(rigid/flexible)
|
|
|
|
