ZF Hurth 286
Marine Transmission

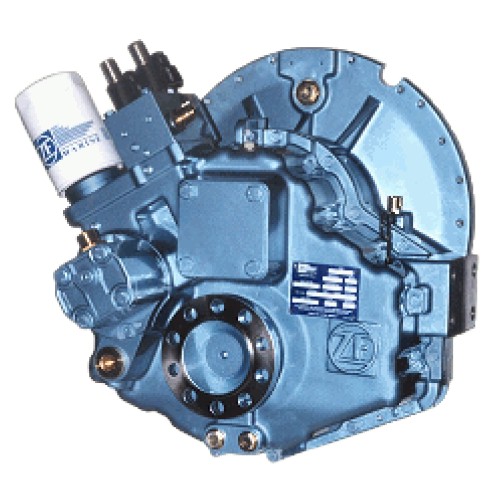

ZF Hurth 286 Marine Transmission
Maximum Input **
DUTY KW HP RPM
Pleasure 566 758 3300
Light 509 682 3300
Medium 380 509 3300
Continuous 345 463 3300
** Must Not Be Exceeded

ZF 286 Description

Reverse reduction marine transmission with mechanically actuated multi-disc clutches.

Suitable for high performance applications in luxury sailboats, motoryachts, fishing boats, etc.

Robust design also withstands continuous duty in workboat applications.

Fully works tested, reliable and simple to install.

Design, manufacture and quality control standards comply with ISO 9001.

Compatible with all types of engines and propulsion systems, including water jets and surface piercing propellers, as applicable.

ZF 286 Features

Lightweight and robust aluminum alloy casing (sea water resistant).

Case hardened and precisely ground gear teeth for long life and smooth running.

Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead.

Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable.

Suitable for twin engine installations (same ratio and torque capacity in ahead or astern mode).

Compact, space saving design: 7° down-angle and beveloid gear.

Replaceable oil filter cartridge.

"SUPERSHIFT" clutch control.

ZF 286 Options

Engine-matched torsional coupling.

SAE 1, SAE 2 and SAE 3 bell housings.

Oil cooler complete with fittings and flexible oil hoses.

Mounting brackets.

Propeller shaft flange and coupling bolt sets.

Mechanical or Electrical Trolling Valve for slow-speed drive.

Classification by all major Classification Societies on request.

Electric clutch control (12 or 24 VDC).

PTO (live).

ZF 286 Request Purchasing Info

Prices are made available by email or phone.
