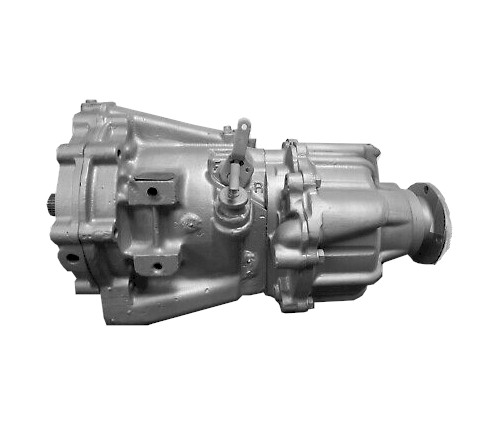

VELVET DRIVE 71 & 72 CR2 MARINE TRANSMISSIONS

  We carry a wide selection of reduction ratios to suit your particular needs.

  Proven, reliable cast iron design.

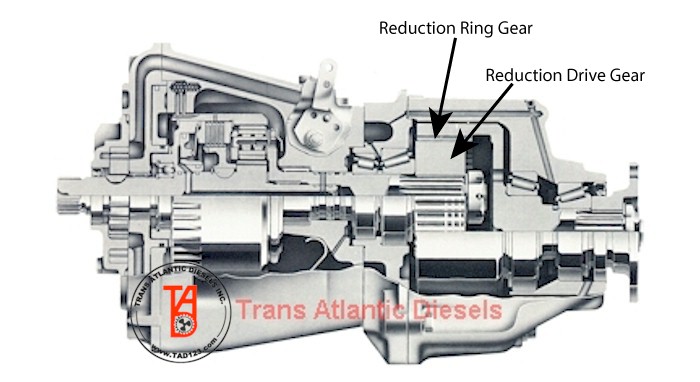

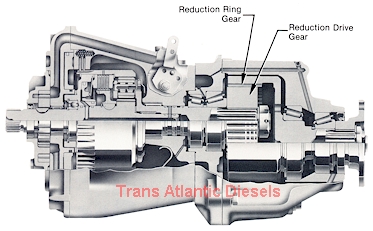

   The Velvet Drive® CR2 was designed specifically for twin screw applications. Its counter rotating feature eliminates the need for opposite rotating engines and the resulting need for costly inventory of two types of engines or engine parts.

   In addition, the CR2's "drop-center" design permits a very easy interchange of units for re-powering applications - single or twin screw.



DIMENSIONS FOR CR2 MODEL 71C (10-13)

Inches    (millimeters)
Model A B C* DØ EØ
CR2 5.63  (143.00) 4.75 (120.65) 18.42 (467.87) 4.25  (107.95) 5.00 (127.00) 5.00  (127.00)
FØ**
Offset Dimensions		 Reduction
1.58:1		 Output Engine
1.23  (31.24)		 Rotation Opposite
1.06 (26.92)
FØ**
Offset Dimensions		 Reduction
2.03:1		 Output Engine
1.66 (42.16)		 Rotation Opposite
1.49 (37.85)
FØ**
Offset Dimensions		 Reduction
2.47:1		 Output Engine
1.95 (49.53)		 Rotation Opposite
1.77 (44.96)
FØ**
Offset Dimensions		 Reduction
2.93:1		 Output Engine
2.16  (54.86)		 Rotation Opposite
1.99 (50.55)

General Information for Model CR2 Model 71C (10-13)
Available Ratios: 1.58      2.03      2.47      2.93:1.00
Shaft Rotation Please specify output shaft rotation to be same as or opposite to engine rotation when ordering.
Approximate Dry Weight
(direct drive):		 162 lb. (73.5 kg.)
*Note:  The front pumps are not to be rotated to match engine rotation. Only available for automotive rotation engines.

General Information for CR2 Model 72C (10-14)
Available Ratios 1.58      2.03      2.47      2.93:1.00
Shaft Rotation output same as engine unless noted by asterisk (*)
Approximate Dry Weight
(direct drive):		 175 lb. (79.4 kg.)
*Note:  The front pumps are not to be rotated to match engine rotation. Only available for automotive rotation engines.

Please be sure to visit our Used & Surplus page for great prices on Velvet Drive Marine Transmissions.

Email your inquires regarding Velvet Drive CR2 Marine Transmissions to tadinc@earthlink.net

or... Please call us at 1-800-927-9295 for more information.
