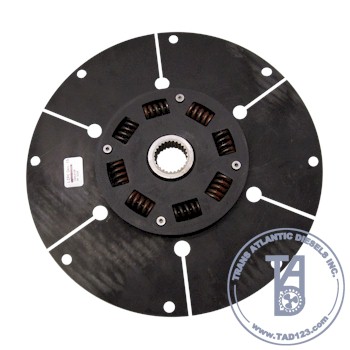

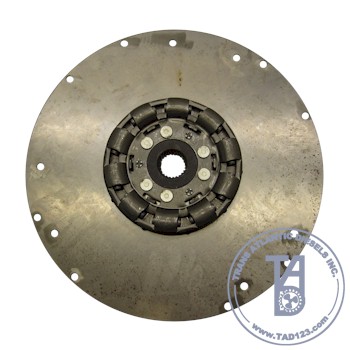

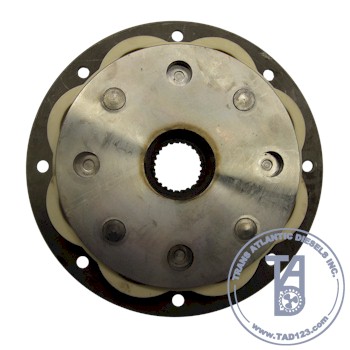

Drive / Damper Plates |
|
|
 |
|
Inches
|
Millimeters
|

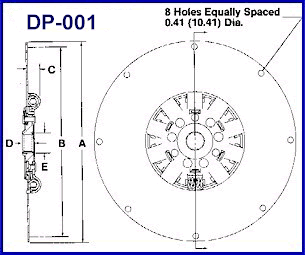

| Diameter A |
13.87 |
352.30 |
| Diameter B |
13.13 |
333.50 |
| Dimension C |
0.99 |
25.15 |
| Dimension D |
0.80 |
20.32 |
| Diameter E |
1.35 |
34.29 |
|
Spline Teeth |
26 |
|
|
|
|
 |
|
Inches
|
Millimeters
|

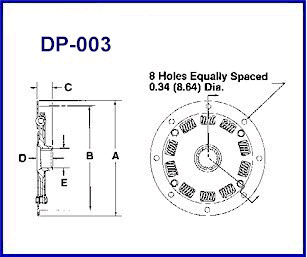

| Diameter A |
6.18 |
157.97 |
| Diameter B |
5.59 |
141.99 |
| Dimension C |
0.54 |
13.72 |
| Dimension D |
0.80 |
20.32 |
| Diameter E |
1.35 |
34.29 |
|
Spline Teeth |
26 |
|
|
|
|
 |
|
Inches
|
Millimeters
|
| Diameter A |
7.98 |
202.69 |
| Diameter B |
7.13 |
181.10 |
| Dimension C |
1.05 |
26.67 |
| Dimension D |
1.10 |
27.94 |
| Diameter E |
1.35 |
34.29 |
|
Spline Teeth |
26 |
|
|
|
|
 |
|
Inches
|
Millimeters
|
| Diameter A |
15.00 |
381.00 |
| Diameter B |
14.50 |
368.30 |
| Diameter B1 |
13.25 |
366.55 |
| Dimension C |
0.51 |
12.95 |
| Dimension D |
0.80 |
20.32 |
| Diameter E |
1.35 |
34.29 |
|
Spline Teeth |
26 |
|
|
|
|
|
