Newage PRM Marine Transmissions - PRM1000

PRM1000

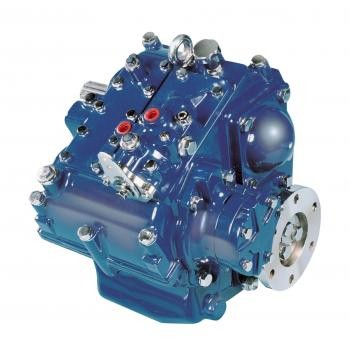

The PRM1000 marine gearbox is purpose built for use with both pleasure craft and commercial boats.



Nominal Power Ratings, PRM1000 'A' (with Angle Drive) Marine Gearbox

Ratios Pleasure Light Commercial Heavy Commercial
BHP kW BHP kW BHP kW
1.53:1 12.95 9.66 9.52 7.10 8.95 6.67
2.03:1 12.64 9.43 9.52 7.10 8.95 6.67

2.857:1

11.50 8.58 9.52 7.10 8.95 6.67

Maximum operating speeds: 3500 rev/min intermittent, 3000 rev/min continuous



Nominal Power Ratings, PRM1000 'D' (Drop Centre) Marine Gearbox


Ratios

Pleasure Light Commercial Heavy Commercial
BHP kW BHP kW BHP kW
1.53:1 14.04 10.47 10.39 7.75 9.82 7.33
2.03:1 12.64 9.43 9.96 7.44 9.40 7.02

2.857:1
4.000:1

11.50 8.58 9.96 7.44 9.40 7.02

Maximum operating speeds: 3500 rev/min intermittent, 3000 rev/min continuous


   Note: These powers have been measured at the engine flywheel. Ratings have been established to ensure the long trouble free life of the gearbox which should not, therefore be used at powers in excess of those shown.

PRM1000 - Full Hydraulic Operation - Offset or Down Angle Output Shaft

  • The PRM1000 marine gearbox is purpose built for use in both pleasure craft and commercial boats; its twin countershaft design provides separate oil-operated multi-disc clutches (which need no adjustment) for ahead and astern drive allowing full rated power to be transmitted continuously in either direction.
  • To cater for the widest possible variety of boats the PRM1000 is offered either with output shaft, offset or 10 down angle output shaft. Reduction ratios available are 1.53:1, 2.03:1, 2.86:1, and 4.00:1 (4.00:1 reduction is not available on down angle gearbox) all of which can provide either left-hand or right-hand propeller rotation in "ahead", making the gearbox particularly well suited to twin engine installations.
  • The gearcase is constructed of high grade cast iron, internally ribbed for rigidity and strength, and consists of two separate halves to facilitate servicing, the oil pump and hydraulic control valves being externally mounted for easy accessibility.
  • The hydraulic operating system functions on normal lubricating oil of the same viscosity as that used in the engine, avoiding the need to use automatic transmission fluid, and ensures rapid response to movements of the operating lever for good boat handling. The operating lever has a positive neutral detent and is suitable for use with proprietary single lever remote control operating systems.
  • Robust and reliable, the hydraulic system is nevertheless provided with a mechanical lock-up device for added security, so that in the unlikely event of hydraulic failure the boat can be brought safely back to port. Access to this device is via a detachable cover located on top of the main gearcase.
  • A special feature of the PRM1000 is the clutched power take-off which is available as an optional extra; this will power a hydraulic pump to SAE J744C type 'B' specification, thus providing an economical and space efficient means of driving on-board machinery.
  • A Trolling Valve is also offered as an optional extra. This is electronically operated which allows variable speed of the propeller to zero whilst allowing a maximum engine speed of up to 1200 rpm.

PRM1000 - Service Classification Definitions - Pleasure

  • Limited to planing hull pleasure craft; operation at full engine throttle should not exceed 5% of total time, with balance usage at 90% of full throttle engine speed, or less. Maximum operation 500 hours per year. The selection of PRM marine transmissions according to this classification for any commercial boat, or in sport-fishing charter boats or in long range pleasure cruisers, is not approved.

PRM1000 - Service Classification Definitions - Light Commercial

  • Planing or semi-displacement craft used in pleasure or commercial applications may qualify for light commercial rating if annual usage is less than 1500 hours and full throttle operation is limited, with most operating time at partial throttle.

PRM1000 - Service Classification Definitions - Heavy Commercial

  • PRM Marine Limited recommends that all displacement and semi-displacement craft used for commercial applications should be classed as heavy commercial duty. In vessels of this type (including trawlers, purse seiners, lobster and crab boats, tugs, ferries, offshore supply boats etc.) the marine gearbox is expected to work at full governed engine speed. The power setting of the engine must be known and must be within the gearbox's permissible heavy commercial rating.

Important to Note:

  • It is essential for the engine, transmission model, reduction ratio and propeller size to be correctly matched so that the engine can attain its rated speed appropriate to the relevant service classification without labouring.
  • It is also necessary to ensure the torsional compatibility of the complete propulsion system from engine through to propeller, since disregarding this may result in gear noise, particularly at low speed operation, and may even result in damage to the engine as well as the transmission components.
  • Trans Atlantic Diesels will provide all possible information and assistance to help find solutions to potential torsional problems, but it is the ultimate responsibility of the person assembling the drive and driven equipment to ensure that they are torsionally compatible.
