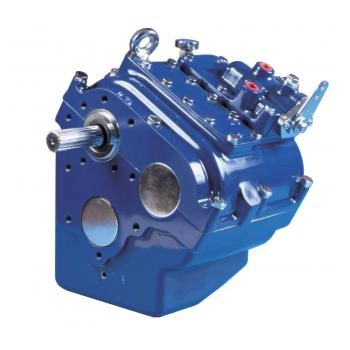

Newage PRM750 Marine Transmission

PRM 750

Full hydraulic operation: offset or down angle output shaft.

The PRM750D and PRM750A marine gearboxes are purpose built for use in both pleasure craft and commercial boats; the twin countershaft design provides separate oil-operated multi-disc clutches (which need no adjustment) for ahead and astern drive allowing full rated power to be transmitted continuously in either direction.

To cater for the widest possible variety of boats the PRM750 is offered in two different configurations : with offset output shaft (PRM750D) and 8° down angle output shaft (PRM750A). Reduction ratios available are 1.09:1, 1.459:1, 1.935:1, 2.565:1, 2.904:1 and 3.952:1 (3.952:1 reduction is not available on down-angle gearboxes) all of which can provide either left-hand or right-hand propeller rotation in "ahead", making the gearbox particularly well suited to twin engine installations.

PRM 750 - Additional Information

Nominal Power Ratings, PRM750D Marine Gearbox (Drop Centre)
Model Ahead Ratio Pleasure Light Commercial Heavy Commercial
KW BHP KW BHP KW BHP
750 D1 1.09:1 7.85 10.52 6.07 8.13 5.86 7.85
750 D1.5 1.459:1 7.85 10.52 6.07 8.13 5.86 7.85
750 D2 1.935:1 7.07 9.84 5.68 7.85 5.55 7.43
750 D2.5 2.565:1 7.07 9.84 5.68 7.85 5.55 7.43
750 D3 2.904:1 5.96 8.00 5.60 7.50 5.24 7.02
750 D2.5 3.952:1 5.96 8.00 5.60 7.50 5.24 7.02
Maximum operating speeds: 4500 rev/min intermittent, 4000 rev/min continuous
Nominal Power Ratings, PRM750A Marine Gearbox (Angle Drive Only)
Model Ahead Ratio Pleasure Light Commercial Heavy Commercial
BHP KW BHP KW BHP KW
750 A1 1.09:1 7.17 9.62 5.68 7.62 5.39 7.23
750 A1.5 1.459:1 7.17 9.62 5.68 7.62 5.39 7.23
750 A2 1.935:1 7.07 9.48 5.68 7.62 5.39 7.23
750 A2.5 2.565:1 7.07 9.48 5.68 7.62 5.39 7.23
750 A3 2.904:1 5.96 8.00 5.60 7.51 5.24 7.02
Maximum operating speeds: 4500 rev/min intermittent, 4000 rev/min continuous

The robust and reliable hydraulic system uses lubricating oil of the same viscosity as that used in the engine, and helps ensure good boat handling by its rapid response to movements of the operating lever.

The operating lever has a positive neutral detent which assists the setting-up of the remote control operating unit whilst for added security, to guard against the unlikely event of hydraulic failure all gearboxes incorporate a mechanical lock-up device so the boat can be brought safely back to port.

The gearcase is constructed of high grade cast iron, internally ribbed for rigidity and strength, and consists of two separate halves to facilitate servicing, the oil pump and hydraulic control valves being externally mounted for easy accessibility.

A special feature of the PRM750D & PRM750A is the direct drive power take-off which is available as an optional extra; this will power a hydraulic pump to SAE J744C type 'B' specification, thus providing an economical and space efficient means of driving on-board machinery.

An electronically operated trolling valve can be fitted, which will allow variable speed of the propeller to zero whilst allowing a maximum engine speed of up to 1200 rpm.

Minimum - 30.34 bar (440 lb./in²), Maximum - 33.44 bar (485 lb./in²). Two tapped holes 1/8" BSP on the top, and M18 x 1.5 on the side of the valve block are provided so that the pressure gauge can be fitted if required.

The normal operating temperature of the oil should be in the 50°C - 80°C range and should not be permitted to exceed 90°C. An oil cooler is necessary to ensure that correct operating temperatures are maintained, and two 3/8" BSP connections are provided on the valve block to allow it to be fitted. The size of the cooler required depends on a number of factors including the transmitted horsepower, operating speed, duty cycle, inlet water temperature and ambient temperature.

Both ahead and astern thrust is carried by the output shaft bearings which are of adequate capacity for all factory approved ratings.

PRM750D
Approximate Dry Weight: 72kg (159lb), excluding adaptor, coupling and cooler.
Oil Capacity: 2.5 litres (4.4 pints) plus the amount require to fill the cooling circuit.

PRM750D4
Approximate Dry Weight: 80kg (176lb), excluding adaptor, coupling and cooler.
Oil Capacity: 3.5 litres (6.16 pints) plus the amount require to fill the cooling circuit.

PRM750A
Approximate Dry Weight: 90kg (198lb), excluding adaptor, coupling and cooler.
Oil Capacity: 3.0 litres (5.28 pints) plus the amount require to fill the cooling circuit.

Limited to planing hull pleasure craft; operation at full engine throttle should not exceed 5% of total time, with balance of usage at 90% of full throttle engine speed, or less. Maximum operation 500 hours per year. The selection of PRM marine transmissions according to this classification for any commercial boat, or in sport-fishing charter boats or in long range pleasure cruisers, is not approved.

Planing or semi-displacement craft used in pleasure or commercial applications may qualify for light commercial rating if annual usage is less than 1500 hours and full throttle operation is limited, with most operating time at partial throttle.

PRM Newage Limited recommends that all displacement and semi-displacement craft used for commercial applications should be classed as heavy commercial duty. In vessels of this type (including trawlers, purse seiners, lobster and crab boats, tugs, ferries, offshore supply boats etc.) the marine gearbox is expected to work at full governed engine speed. The power setting of the engine must be known and must be within the gearbox's permissible heavy commercial rating.
