PERKINS 4.236M MARINE DIESEL ENGINE

Model 4.236M

Perkins Marine Diesel Engines

85 HP

THE PERKINS 4.236M - MARINIZED BY TRANS ATLANTIC DIESELS

New Perkins 4-236 Marine Diesel



Engines pictured are new.



Engines supplied may vary from the photos.



Accessories shown are available as options.

PERKINS 4.236 MARINE - GENERAL DATA

Bore / Stroke: 3.875 in. / 5.00 in. Rotation: Anti clockwise viewed from rear
Maximum Horsepower: 84 @ 2800 RPM Fuel Pump: Rotary distributor type
Number of Cylinders: 4 inline vertical Governing: Mechanical
Cubic Capacity: 235.8 cu. in. Cooling: Heat exchanger freshwater cooled
Compression Ratio: 16:1 Weight: 1,100 lbs.. with direct drive Borg-Warner gearbox.  1,145 lbs.. with reduction gear
Cycle: 4 stroke Power Take Off: Full engine torque from front end extension shaft
Aspiration: Natural Firing Order: 1 . 3 . 4 . 2
Combustion System: Direct injection Installation Angle: Max. static angle of 17° allowing further 3° rise underway

PERKINS 4.236 MARINE - ELECTRICAL DATA

Standard 12 Volt. Starter motor, 65 Amp Alternator.
(24 Volt system available on request.)


PERKINS 4.236 MARINE - OPTIONAL EXTRAS & ACCESSORIES

Water injected exhaust elbow to accept 3" i.d. exhaust hose.

Anti-vibration engine mounts, set of 4.

Transmission oil cooler and lines.

Additional front PTO pulley available. (Stackable)
Hand operated oil change pump.
Shaft coupling.
ISO ground.

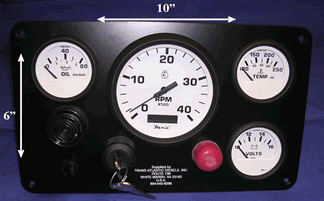

PERKINS 4.236 MARINE - ENGINE INSTRUMENT PANEL

     Includes Tachometer with hour meter, water temp, oil pressure, voltmeter and audio alarm system indicating low oil pressure or high water temp. Standard length 8ft with plug-in extensions available.



PERKINS 4.236 MARINE - GENERAL INFORMATION

About the engine: If ever an engine deserved the name "Workhorse" it’s this one. It’s excellent reputation around the world for reliability, durability, and simplicity makes this engine a favorite amongst serious boaters. There are high volumes of the 4-236 engines in use throughout the world, not only in the marine environment. Hence, the good availability of engine parts. For the long run, replaceable cylinder liners are used making the engine fully rebuild able in years to come. Our version utilizes a one-piece heat exchanger, water cooled exhaust manifold and header tank, minimizing the number of hoses, connections, and pipe-work around the engine. This makes for a compact and clean installation with very easy access to the heat exchanger tube stack when cleaning is required.

PERKINS 4.236 MARINE - TRANSMISSION OPTIONS

New Hurth HBW 250 Transmission (Reduction on request)
New Borg Warner 72 Series Transmission (Reduction on request)
Rebuilt Borg Warner Velvet Drive Transmission
 (Optional reductions available)
PRM Hydraulically Operated Transmission (Reductions: 1.96:1 or 2.94:1)

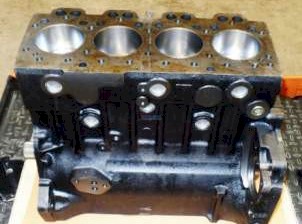

     Remanufactured units are available. All units are stripped, magna fluxed and checked to Perkins recommended specifications. We use the Genuine Perkins Overhaul Kit (as shown under Parts/Rebuild Kits) for all of our Perkins rebuilds.  Each unit has been test run and comes with our six month parts replacement and in house labor warranty.

     Our rebuild program is based on an exchange basis. The core charge will vary depending on the engine model requested. If you have any questions or require more information please feel free to
contact us.

Fill out the form below and submit your request for information regarding the Perkins 4.236M to Trans Atlantic Diesels

or

Call us at 1-800-927-9295 for more information.
