ZF Hurth 12 M
Marine Transmission

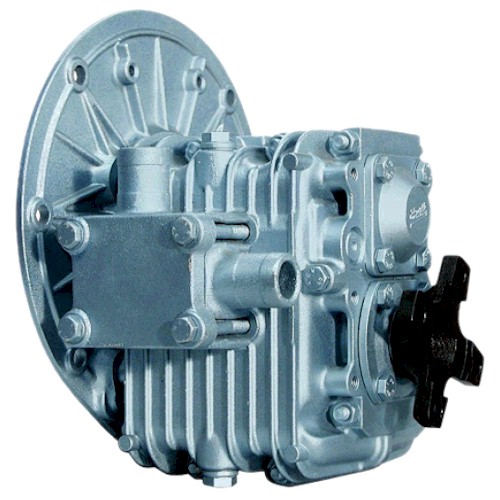

ZF Hurth 12 M Marine Transmission
Maximum Input **
DUTY KW HP RPM
Pleasure 55 73 5000
Light 50 67 5000
Medium 46 61 5000
Continuous 40 53 5000
** Must Not Be Exceeded

ZF 12 M Description

Reverse reduction marine transmission with mechanically actuated multi-disc clutches.

Suitable for high performance applications in luxury sailboats, motoryachts, fishing boats, etc.

Robust design also withstands continuous duty in workboat applications.

Fully works tested, reliable and simple to install.

Design, manufacture and quality control standards comply with ISO 9001.

ZF 12 M Features

Lightweight and robust aluminum alloy casing (sea water resistant).

Case hardened and precisely ground gear teeth for long life and smooth running.

Output shaft thrust bearing designed to take maximum propeller thrust.

Compact, space saving design.

ZF 12 M Options

Engine-matched torsional coupling.

BW, SAE 4 or SAE 5 bell housings.

Oil cooler. To be used when input power exceeds following values:- Pos. «A» 40 kW - Pos. «B» 25 kW.

Control cable bracket for mounting of push-pull cable to the control lever.

Classification by all major Classification Societies on request.
