ZF Hurth 220
Marine Transmission

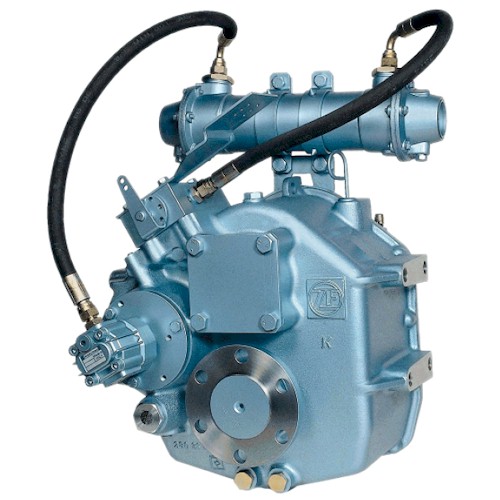

ZF Hurth 220 Marine Transmission
Maximum Input **
DUTY KW HP RPM
Pleasure 443 593 4500
Light 399 534 4500
Medium 238 319 3200
Continuous 192 258 3200
** Must Not Be Exceeded

ZF 220 Description

Reverse reduction marine transmission with mechanically actuated multi-disc clutches.

Suitable for high performance applications in luxury sailboats, motoryachts, fishing boats, etc.

Robust design also withstands continuous duty in workboat applications.

Fully works tested, reliable and simple to install.

Design, manufacture and quality control standards comply with ISO 9001.

Compatible with all types of engines and propulsion systems, including water jets and surface piercing propellers, as applicable.

ZF 220 Features

Lightweight and robust aluminum alloy casing (sea water resistant).

Case hardened and precisely ground gear teeth for long life and smooth running.

Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead.

Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable.

Suitable for twin engine installations (same ratio and torque capacity in ahead or astern mode).

ZF 220 Options

Engine-matched dual stage coupling.

SAE 2 and SAE 3 bell housings.

Oil cooler complete with fittings and flexible oil hoses.

Mounting brackets.

Propeller shaft flange and coupling bolt sets.

Trolling valve for slow-speed drive.

Electric clutch control (12 or 24 VDC).

PTO (live).

Classification by all major Classification Societies on request.
